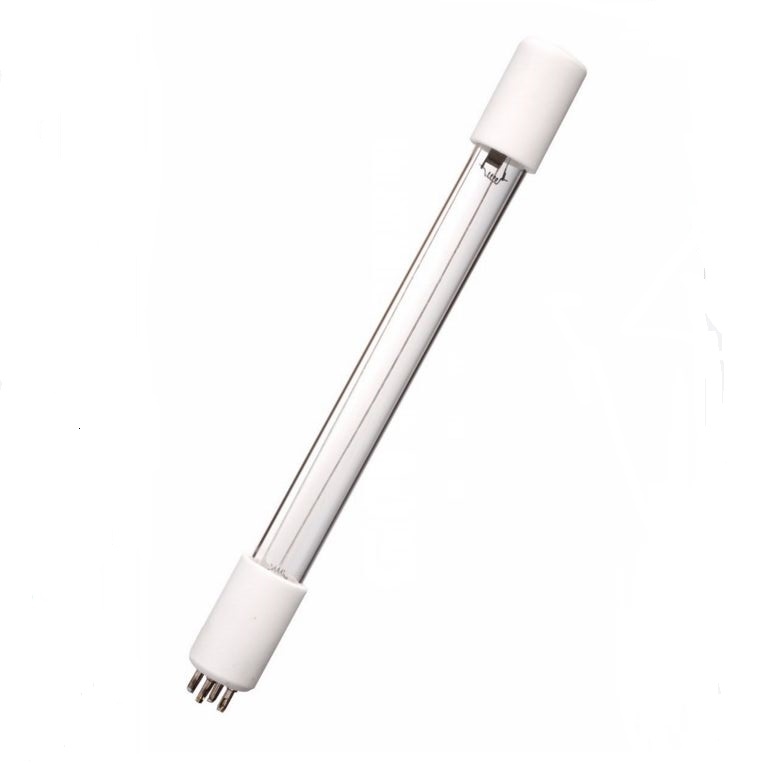

High output UV lamp
- Category： UV lamp
- Views：1345
- Shape: tube 4P
- base/socket: G10Q
- air disinfection, water treatment
- power: 18W-150W
- Product description：high output UV lamp, Germicidal lamp. Bactericidal lamp. Sterilizer lamp. For air disinfection and water disinfection.
luna@luna-luz.com
Product: HO UV germicidal lamp
Base/socle: G10Q single ended
Voltage: AC 110-240V
Power: 18W-150W
Special coating inside glass tube to prevent UV reduce
Ultraviolet: can provide only emit 253.7nm, or emit both 253.7nm and 185nm (185nm will emit ozone smell).
Functions: Bacterial lamp, germicidal lamp, air disinfection.
Applications: air sterilizer and water treatment
Model
Tube Dia.
(mm)
Length
(mm)
Power
(W)
Voltage at
50/60Hz(V)
Current
(mA)
Voltage at High Freq
(V)
UVC Output
at 254nm
(μw/cm2)/w
Long Life
(h)
GPH212T5L/HO
15
212
18
23
800
19
50
5
13000
GPH287T5L/HO
15
287
27
34
800
24
75
7
13000
GPH357T5L/HO
15
357
32
40
800
30
95
10
13000
GPH436T5L/HO
15
436
48
70
800
60
120
13
13000
GPH793T5L/HO
15
793
72
90
800
76
210
24
13000
GPH846T5L/HO
15
846
80
127
800
113
260
28
13000
GPH893T5L/HO
15
893
90
135
800
120
270
30
13000
GPH1148T5L/HO
15
1148
120
166
800
154
310
30
13000
GPH1554T5L/HO
15
1554
145
220
800
195
400
45
13000
GPS846T6L
19
846
80
130
800
115
280
30
13000
GPS1148T6L
19
1148
120
185
800
170
340
38
13000
GPS1554T6L
19
1554
150
230
800
200
400
45
13000
If you can't find what you need on above, please feel free to contact us.
