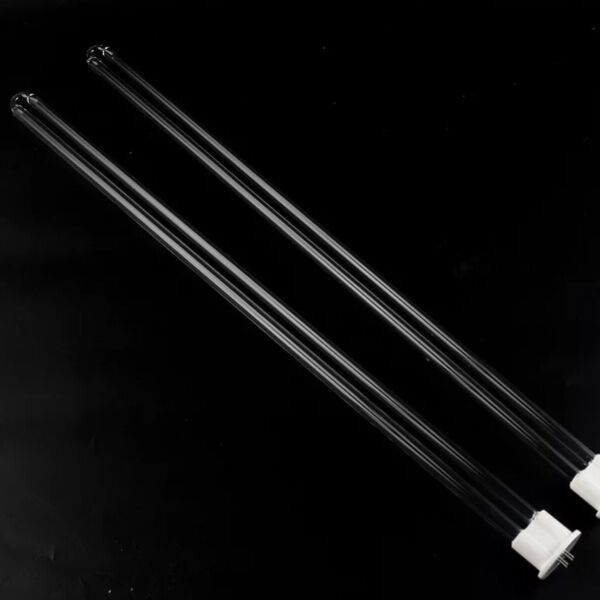

U shape UV lamp
- Category： UV lamp
- Views：1221
- Shape: u shape
- base/socket: G10Q
- air disinfection
- power: 17W-150W
- Product description： U shape UV lamps, U shape germicidal lamp. U shape bactericidal lamp. U shape sterilizer lamp. For air disinfection.
luna@luna-luz.com
Product: U shape UV germicidal lamp
Base/socle: G10Q or according to customers' requirement
Voltage: AC 110-240V
Power: 17W-150W
Special coating inside glass tube to prevent UV reduce
Ultraviolet: can provide only emit 253.7nm, or emit both 253.7nm and 185nm (185nm will emit ozone smell).
Functions: Bacterial lamp, germicidal lamp, air disinfection.
Applications: air sterilizer.
Model
Tube Dia.
(mm)
Length
(mm)
Power
(W)
Voltage at
50/60Hz(V)
Current
(mA)
Voltage at High Freq
(V)
UVC Output
at 254nm
(μw/cm2)/w
Long Life
(h)
GU76-10T5L
15
169
17
51
425
42
57
4.7
13000
GU22-10T5L
15
186
17
51
425
42
57
5.7
13000
GU22-390T5L
15
390
36
100
425
85
105
12
13000
GU76-390T5L
15
390
37
108
425
88
110
12.8
13000
GU76-36T5L
15
412
41
120
425
98
135
14.3
13000
GU22-36T5L
15
429
41
120
425
98
135
14.3
13000
GU22-810T5L
15
810
150
210
800
190
410
45
13000
