  • T5 4pins uv lamps

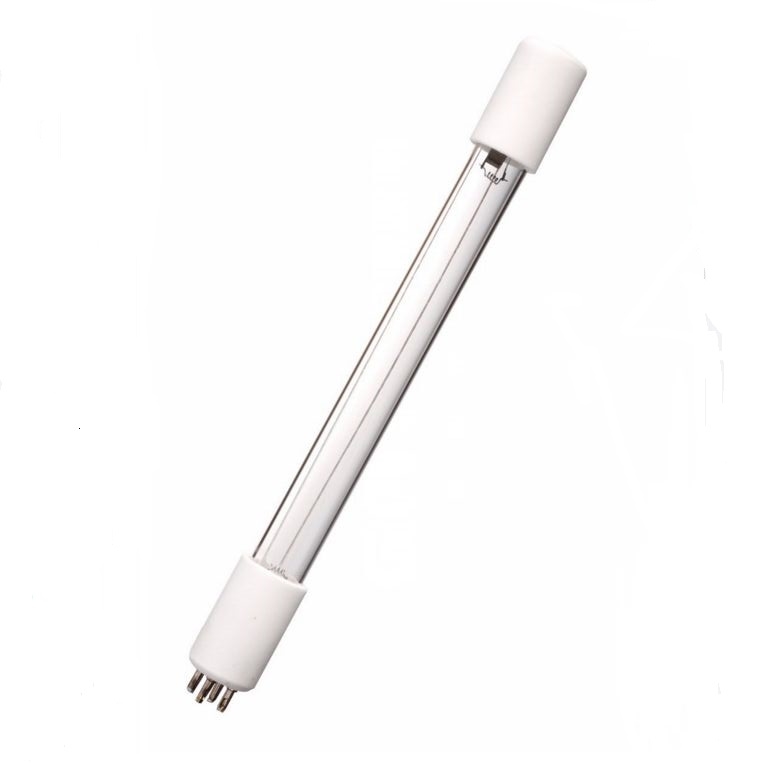

T5 4pins uv lamps

T5 4pins uv lamps

    luna@luna-luz.com
  • Category: UV lamp
  • Views:1370
  • Shape: tube 4P
  • base/socket: G10Q
  • air disinfection, water treatment
  • power: 6W-79W
  • Product description:T5 UV lamp, T5 germicidal lamp. T5 bactericidal lamp. T5 sterilizer lamp. For air disinfection and water disinfection.
  • Order online

Product: T5 UV germicidal lamp

Base/socle: G10Q or according to customers' requirement

Voltage: AC 110-240V

Power:  6W-79W

Ultraviolet: can provide only emit 253.7nm, or emit both 253.7nm and 185nm (185nm will emit ozone smell).


Functions: Bacterial lamp, germicidal lamp, air disinfection.

Applications: air sterilizer and water treatment



Model Tube Dia.
(mm)
Length
(mm)
Power
(W)
Voltage at
50/60Hz(V)
Current
(mA)
Voltage at High Freq
(V)
UVC Output
at 254nm
(μw/cm2)/w
Long Life
(h)
Below type pre-heated start
GPH118T5L 15 118 6 25 425 21 12 1.4 13000
GPH150T5L 15 150 8 27 425 22 14 1.7 13000
GPH212T5L 15 212 10 30 425 25 26 2.7 13000
GPH287T5L 15 287 14 41 425 34 40 4 13000
GPH303T5L 15 303 15 43 425 35 43 4.3 13000
GPH357T5L 15 357 17 51 425 42 57 5.7 13000
GPH436T5L 15 436 21 62 425 51 72 7.3 13000
GPH550T5L 15 550 28 69 425 60 85 8.5 13000
GPH793T5L 15 793 37 112 425 92 120 13 13000
GPH843T5L 15 843 40 120 425 98 135 15 13000
GPH1148T5L 15 1148 55 165 425 135 170 20 13000
GPH1554T5L 15 1554 75 220 425 179 220 30 13000
GPH1630T5L 15 1630 79 231 425 189 220 32 13000
Below type instant start
G10T5L 15 357 17 51 425 42 57 5.7 13000
G36T5L 15 843 40 120 425 98 130 15 13000
G48T5L 15 1148 55 165 425 135 170 20 13000
G64T5L 15 1554 75 220 425 179 220 30 13000
G67T5L 15 1630 79 231 425 189 225 32 13000
